Premium components for great performance with very low noise
Corsair RMi series power supplies are 80 PLUS Gold certified and give you extremely tight voltage regulation, virtually silent operation, and a fully modular cable set. With all Japanese 105°C capacitors, they?re a great choice for high performance PCs where reliability is essential. Corsair Link Digital makes it easy to monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.

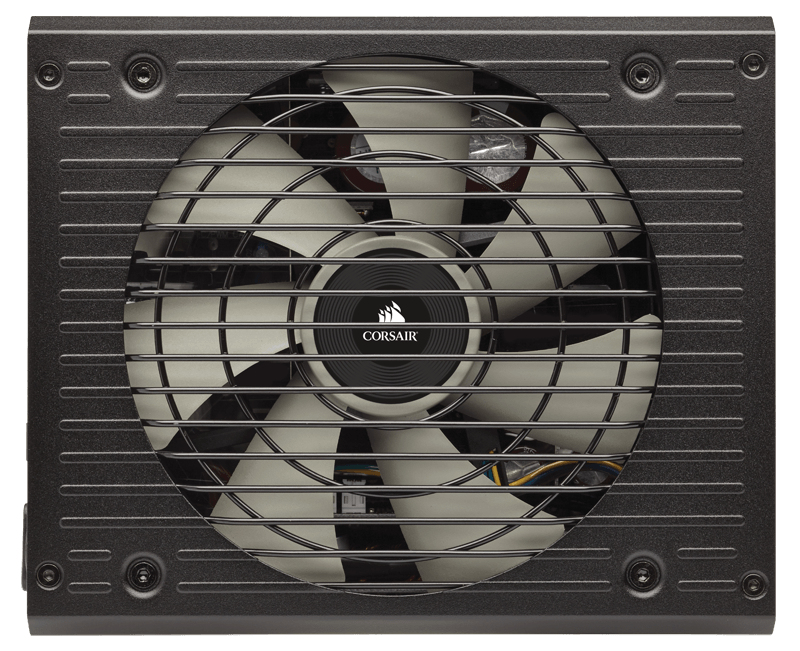

- Corsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail/single rail mode. - 80 PLUS® Gold efficiency, delivering 90% energy efficiency at real world load conditions. - ZeroRPM mode for fanless operation at low loads and outstanding noise reduction. - 135mm thermally controlled fluid dynamic bearing fan spins up as needed. - Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer?s chassis. - Engineered to meet maximum power output at a server-grade 50°C temperature rating. - Fan self-test switch to determine fan functionality even before installation. - Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components. - Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
Specificaties
Poorten & interfaces
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
8
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
10
EPS power connector (8-pin)
PCI Express power connectors (6+2 pin)
6
CPU power connector (4+4 pin)
ATX power connector (20+4 pin)
Floppy drive power connector
2
Aansluiting voor diskettestation
Bekabelingstype
Modulair
Gewicht en omvang
Breedte
150 mm
Diepte
180 mm
Hoogte
86 mm
Gewicht
1,98 kg
Energie
Totaal vermogen
850 W
AC invoer voltage
100 - 240
AC invoer frequentie
47 - 63
Stroom
6 - 12
Gecombineerd vermogen (+3.3V)
150 W
Gecombineerd vermogen (+12V)
850 W
Gecombineerd vermogen (+5V)
150 W
Gecombineerd vermogen (-12V)
9,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
25 A
Max huidige output(+12V)
70,8 A
Max huidige output (+5V)
25 A
Max huidige output (-12V)
0,8 A
Max huidige output (+5Vsb)
3 A
Efficientie
91 procent
Stroomspanning bescherming
Overstroom, Overspanning, Kortsluiting, Onder spanning
